DWR1722
Back to: Optional Accessories
Disco
Numerous functions, ultra compact
The DWR1722 is a DI water recycling unit for dicing saws with functions for DI water production, water temperature adjustment, filtration, and removal of suspended solids such as cutting particles. Thanks to the introduction of the compact and highly efficient CC Filter, an original DISCO invention, a small equipment footprint has been made possible.
Environmentally friendly
The high recycle rate (99.5% with zero wastewater) exceeds what is possible with conventional recycling units and greatly reduces city water consumption. Since this unit can be installed adjacent to dicing saws, piping can be shortened and water temperature fluctuations as the water runs through the piping can be minimized. Furthermore, together with the high recycling rate and water consumption, the power needed for water temperature control is also minimized.
Efficient installation at your facility
Different from the conventional large scale DI water recycling facilities, this unit can be introduced efficiently in accordance with the number of dicing saws installed. Furthermore, since it can be installed adjacent to the dicing saws, piping construction for DI water supply and recovery of wastewater becomes unnecessary. For the DWR1722, the RO unit and other functions have been reclassified as options, for a simplified standard specification. Our customers can now select only the functions they need, so we can provide the most suitable specification for our customers.
Notes:
-A separate water supply at a controlled temperature is necessary in order to cool the chiller unit.
-The DWR1722 can handle two dual spindle dicing saws or four single spindle dicing saws.
-When producing DI water from city water, an RO film unit (option) is required.
Easy maintenance
The CC Filter and ion exchange resin can be replaced with a one-touch coupler connection so that the time needed for maintenance is greatly reduced.
CC Filter: Disposable filter module with high performance
The DISCO original CC Filter provides both high filtration performance and long life time. Suspended solids filtered out by the CC Filter can be disposed of easily together with the filter.
Easy operation
Operation of the DWR1722 can be linked with a dicing saw (optional). This reduces the load on the operator and the possibility of human error.
Specification
*Product appearance, features, specifications, and other details may change due to technical modifications.
*Please read the standard specification sheet thoroughly before use.
Related Products
Back to Optional Accessories

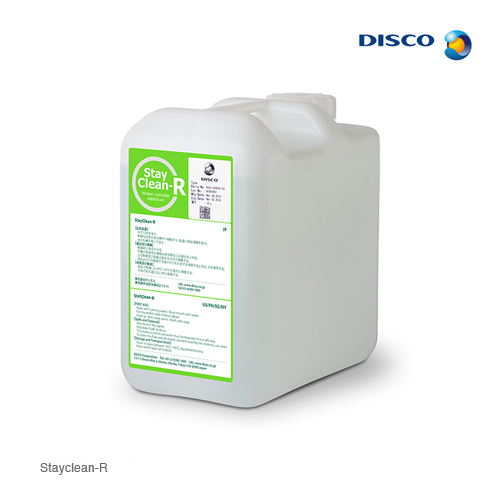

StayClean-R
Conserving Water While Preventing Corrosion Prevents Corrosionby DI water The active component in StayClean-R continuous…

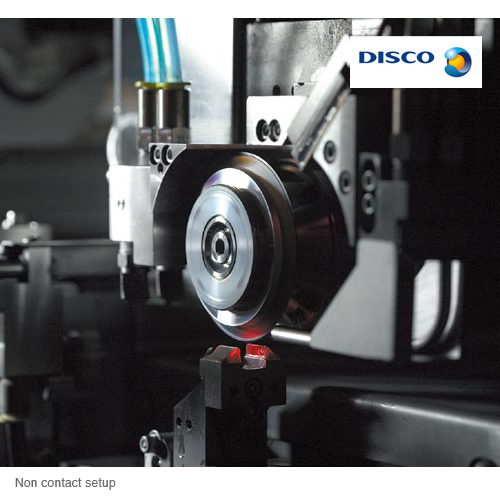

Non contact setup
Blade tip position relative to the chuck table surface is detected by an optical sensor. Processing quality is stable si…

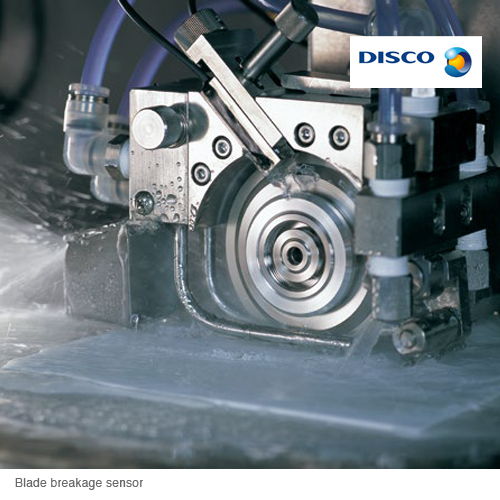

Blade breakage sensor
